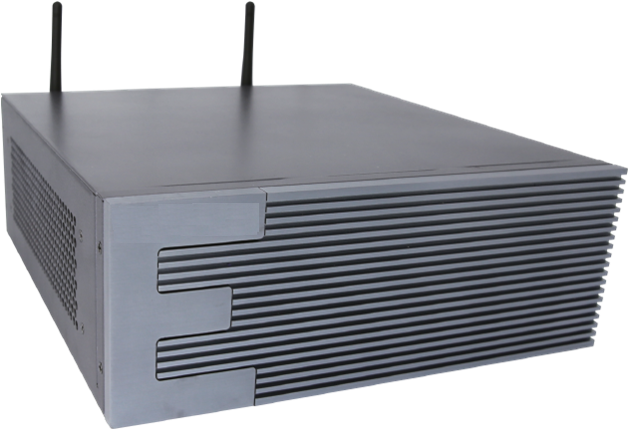

2U high-performance multi-expansion industrial control computer
Intel H110 chipset, VGA/HDMI, 2 x LAN, multiple USB
It has compact size, high performance, high cost performance and other characteristics; Good scalability in a small size;
The chassis adopts a miniaturized design, which can meet the needs of installation in small spaces. Main application areas: finance, intelligent services, intelligent manufacturing, etc.
Supports Intel® 6th/7th Gen. Core™ i3/i5/i7, Pentium®/Celeron® high-performance processors
Using H110 chipset
Support dual Gigabit network ports
Support VGA and HDMI dual-screen display
Built-in one PCIe X 4 slot

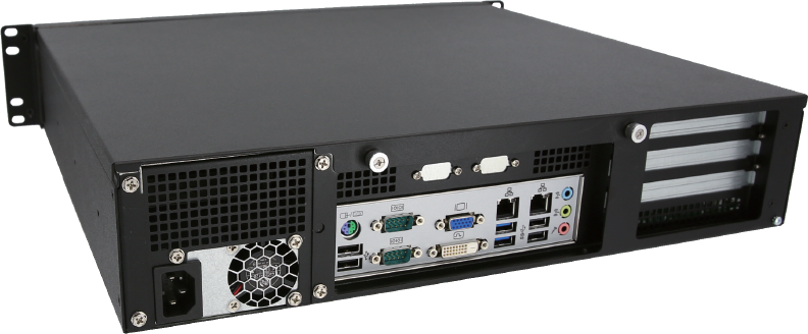

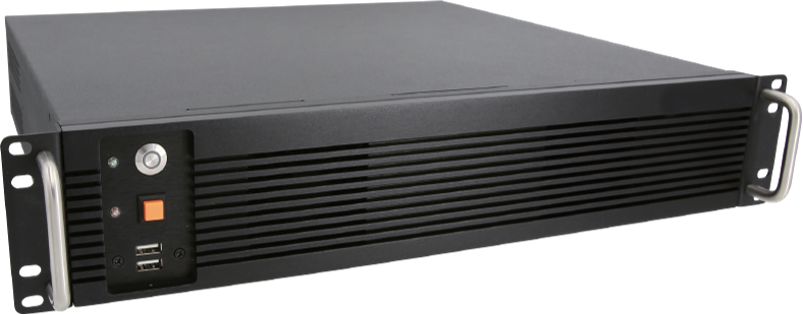

2U standard rack-mounted high-performance multi-expansion industrial control computer
Dual display (VGA/DVI-D), dual network, 8 x USB, 2 x COM, multiple expansion
The system uses Intel® 4th Gen. Core™ i3/i5/i7, Pentium®/Celeron® high-performance processors, paired with H81 ATX motherboards
It has the characteristics of standard size, high performance, and high cost performance; The chassis is strong and has excellent performance
Main application areas: finance, intelligent manufacturing, power, transportation, industrial automation, etc
Supports Intel® 4th Gen. Core™ i3/i5/i7, Pentium®/Celeron® high-performance processors
Q87 chipset, support RAID 0/1/5
Support dual Gigabit network ports
Support VGA and DVI dual-screen display
Built-in PCI and PCIe slots, supporting multiple module expansions
Anti-vibration disk drive rack design, supporting 2 x 2.5' HDDs and 2 x 2.5' SSDs [2 x 2.5' + 2 x 2.5'].
Front accessible USB interface for easier data transfer
USB ports on the shoreline support Ennoconn USB SR Pro technology

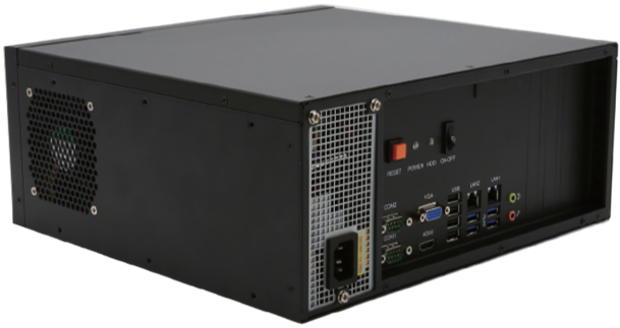

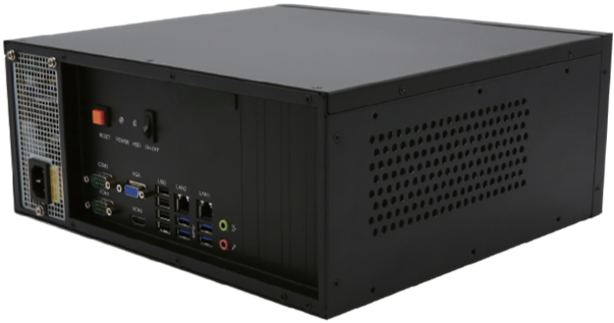

3U Quasi-System, Dual Display (VGA/HDMI)
Dual network, 10 x USB, 2 x COM, multiple expansion
The system uses Intel® Skylake-S platform, H110 chipset, VGA/HDMI, 2 x LAN, multiple USB,
It has strong scalability, high performance, and cost-effective features; Good scalability in a small size;
The chassis adopts a miniaturized design, which can meet the needs of installation in small spaces.
Main application areas: machine vision, self-service terminals, security check, etc.
Supports Intel® 6th/7th Gen. Core™ i3/i5/i7, Pentium®/Celeron® high-performance processors
Using H110 chipset
Support dual Gigabit network ports
Support VGA and HDMI dual-screen display
Built-in PCIe 16X and 4X slots, supporting multiple module expansions

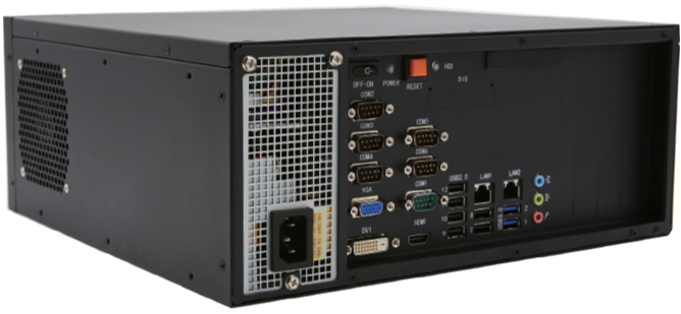

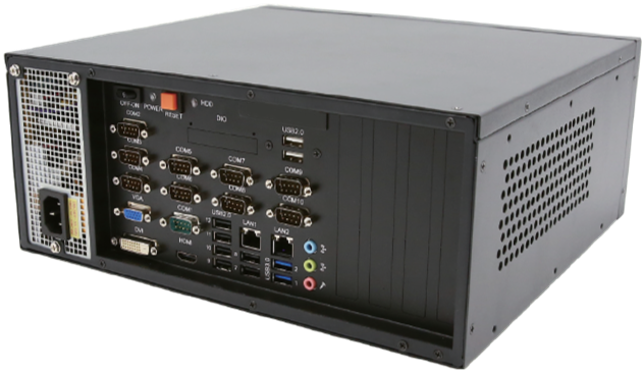

3U barebone, three displays (VGA/HDMI/DVI-D)
Dual network, multiple serial ports, multiple USB ports, multiple expansion ports
The system uses Intel® Haswell platform and H81 chipset, which has rich I/O interfaces and high flexibility, as well as multi-functional expansion and strong structural characteristics.
The chassis adopts a miniaturized design, which can meet the needs of installation in a small space.
Main application areas: finance, self-service terminals, intelligent manufacturing, etc.
Supports Intel® 4th Gen. Core™ i3/i5/i7, Pentium®/Celeron® high-performance processors
H81 chipset is adopted
Support VGA, HDMI, DVI-D dual-screen display
Support dual Gigabit network ports
Support TPM encryption chip optional
Built-in PCI and PCIe slots, supporting multiple module expansion

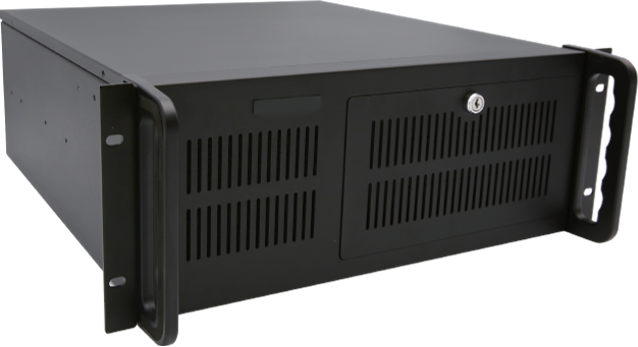

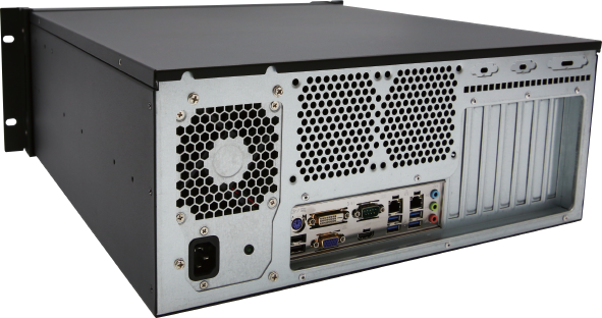

4U standard rack-mounted high-performance multi-expansion industrial control computer
2 x LAN, multiple serial ports, multiple USB ports, multiple expansion ports
The system supports 6th/7th generation Intel® Core™ i3/i5/i7, Pentium®, Celeron® processors, and is paired with H110 desktop platform motherboards,
It provides ultra-high computing power and display performance, with multiple expansion slots and rich I/O interfaces on the specifications, featuring standard size, high performance, and high cost performance,
It can meet the needs of industry and industrial regulations: industrial automation, intelligent manufacturing, transportation, environmental protection, security inspection, etc.
High performance, supports Intel® 6th/7th Gen. Core™ i3/i5/i7 processors
Using H110 chipset
Support dual Gigabit network ports
Support VGA, HDMI, DVI dual display function
Built-in PCI and PCIe slots, supporting multiple module expansion
Anti-vibration disk shelf design, supporting 3 5.25-inch optical drives and 1 2.5-inch optical drive"SSD、4 HDD hard disks[ 4 x 3.5"/（2 x 3.5"+ 2 x 2.5"）]
Front accessible USB interface for easier data transfer

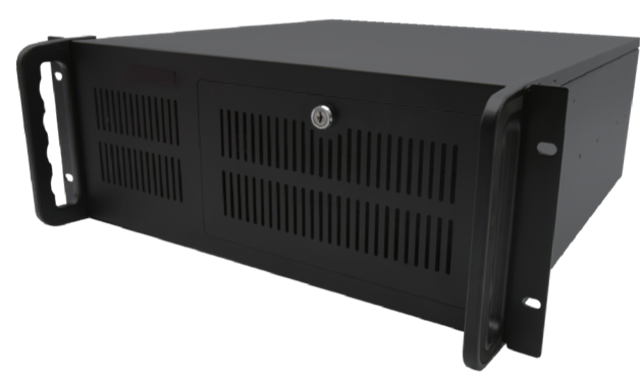

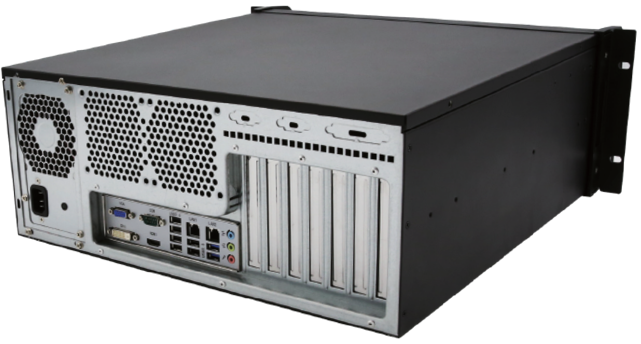

4U standard rack-mounted high-performance multi-expansion industrial control computer, 三显(VGA/HDMI/DVI-D)
Dual network, 8 x USB, 1 x COM, multiple expansion
The system uses Intel® 4th Gen. Core™ i3/i5/i7, Pentium®/Celeron® high-performance processors, paired with H81 desktop platform motherboards,
It has the characteristics of standard size, high performance, and high cost performance; The chassis structure is strong and has excellent performance, and the front door panel can be locked to prevent unauthorized operation.
Main application areas: finance, intelligent manufacturing, power, transportation, industrial automation and other fields.
Supports Intel® 4th Gen. Core™ i3/i5/i7, Pentium®/Celeron® high-performance processors
H81 chipset is adopted
Support dual Gigabit network ports
Support VGA, HDMI, DVI dual-screen display
Built-in PCI and PCIe slots, supporting multiple module expansion
Anti-vibration disk shelf design, supporting 3 5.25-inch optical drives and 1 2.5-inch optical drive"SSD、4 HDD hard disks[ 4 x 3.5"/（2 x 3.5"+ 2 x 2.5"）]
Front accessible USB interface for easier data transfer

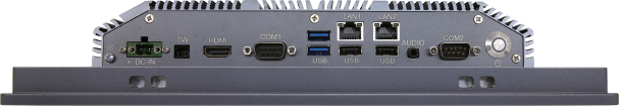

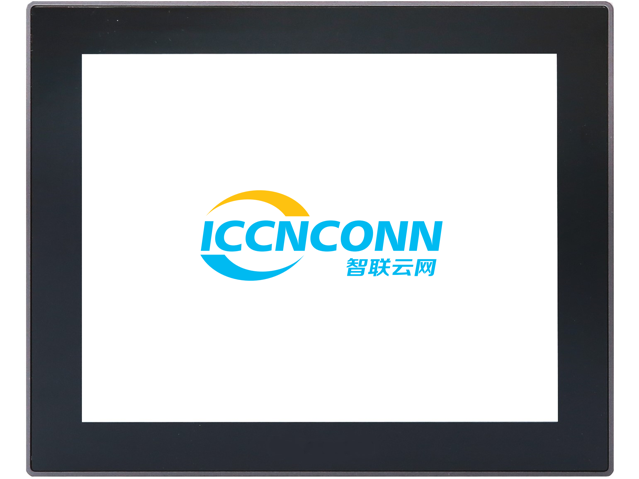

Fanless industrial tablet computer, using 12.1 full-flat five-wire resistive screen
Intel® Skylake Core™ i3-6100U/i5-6200U processor
12.1 industrial-grade LCD screen, 4:3 screen, the whole machine uses Intel® Skylake Core™ i3-6100U/i5-6200U CPU,
Ultra-thin design, with strong, fanless, shock-proof, and highly compatible features,
It can be widely used in industrial automation, MES systems, embedded device control, self-service device control terminals, and other fields.
Intel® Skylake Core™ i3-6100U/i5-6200U processor, with a base frequency of 2.3GHz
12.1-inch LED backlit display, front frame supports IP65 protection level
The aluminum alloy body makes it thin, strong, stable, and has better heat dissipation effect
Industrial grade five-wire full-plane resistive touch screen
Built-in Mini-PCIe/M.2 supports multiple module expansions
Support dual Gigabit network ports
Wide voltage 9-36V DC-IN, lockable Phoenix terminal interface
Support remote switch
Grounding protection for product shell
Built-in 1 x 2.5-inch HDD/SSD expandable bracket
Support standard VESA and embedded installation methods

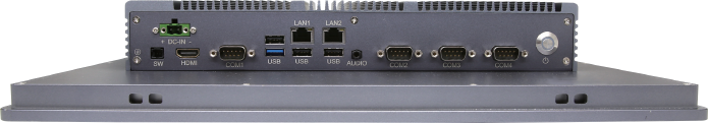

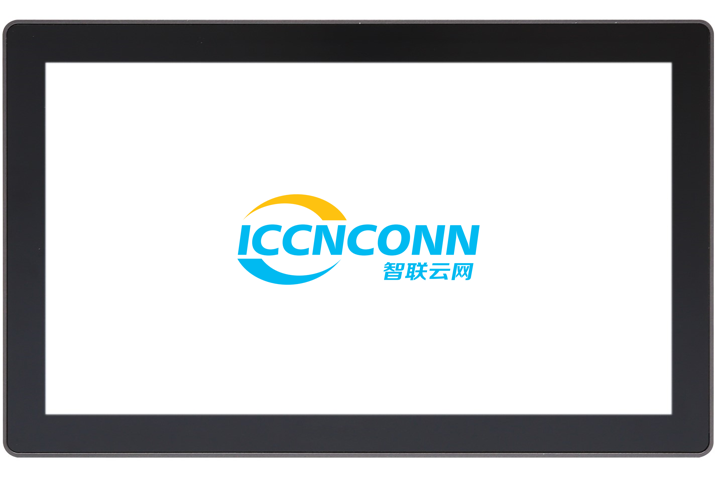

Fanless Industrial Panel PC
15.6 full-flat 10-point projection capacitive screen, Intel BayTrail J1900 platform
15.6 industrial-grade LCD screen, 16:9 widescreen, 500nits, the whole machine uses Intel® Celeron® J1900 CPU,
Ultra-thin design, with strong, fanless, shock-proof, and highly compatible features,
It can be widely used in industrial automation, MES systems, embedded device control, self-service device control terminals, and other fields.
Support Intel® Celeron® J1900 high-performance low-power quad-core processor, with a maximum clock speed of 2.0GHz
15.6-inch 500nits high-brightness LED backlit display, front frame supports IP65 protection level
The aluminum alloy body makes it thin, strong, stable, and has better heat dissipation effect
Industrial grade 10-point projected capacitive touch screen
Built-in Mini-PCIe/M.2 supports multiple module expansions
Support dual Gigabit network ports
Wide voltage 9-36V DC-IN, lockable Phoenix terminal interface
Support remote switch
Grounding protection for product shell
Built-in 1 x 2.5-inch HDD/SSD expandable bracket
Support standard VESA and embedded installation methods

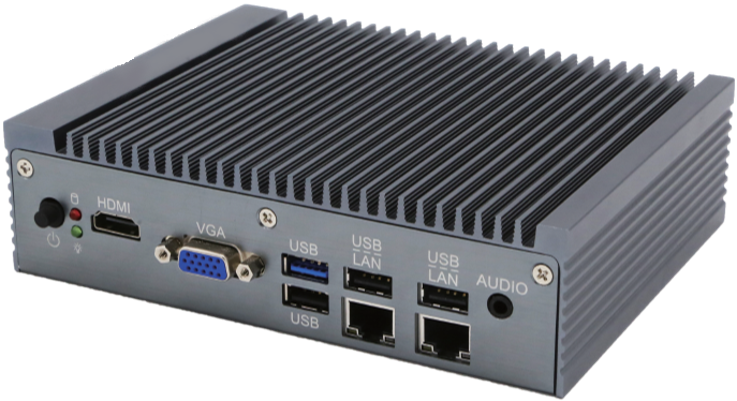

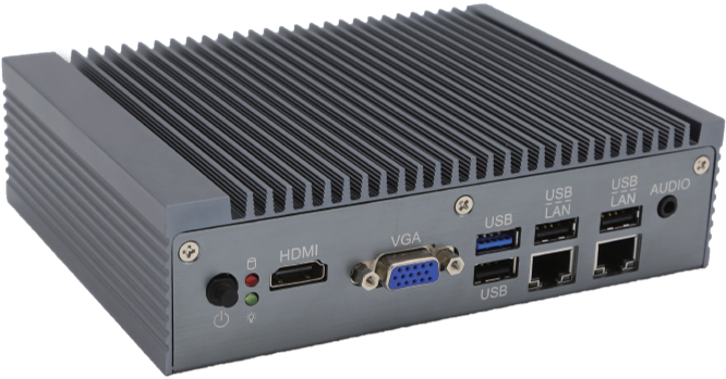

Intel® Skylake CoreTM i3-6100U processor, dual-core, TDP 15W
Dual network ports, dual serial ports, four USB ports, 9-36V wide voltage input
Equipped with Intel® Skylake CoreTM i3-6100U processor, it is lightweight, small in size, high-performance, and has a strong mechanism,
It can be widely used in digital signage, industrial automation, small intelligent gateways, remote terminal control, self-service equipment, integrated cabinets, and other fields.
Onboard Intel® Skylake CoreTM i3-6100U processor, with a maximum clock speed of 2.3GHz
Support single-channel DDR4 1866/2133MHz SODIMM memory slot, with a maximum memory capacity of 16GB
Support dual Gigabit network ports
Support VGA/HDMI multi-extension display
Built-in Mini-PCIe and M.2 support multiple module expansion
9~36V wide voltage design, lockable DC-IN interface

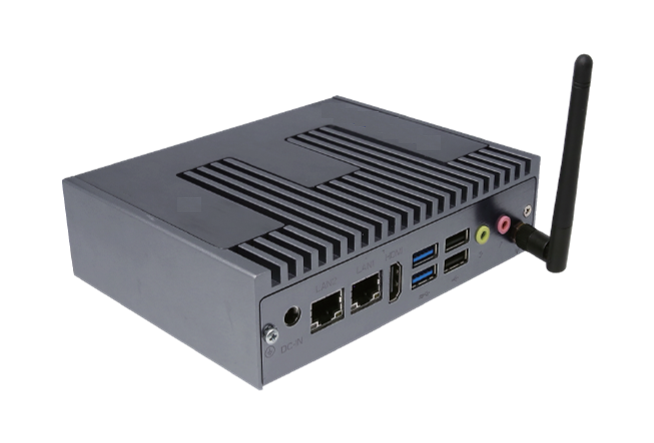

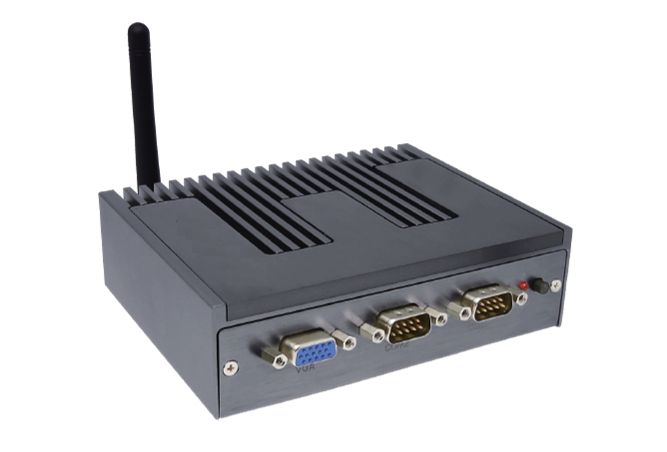

Intel®Apollo Lake series N3350 dual-core processor/J3455 quad-core processor
Equipped with dual Gigabit Ethernet ports/4 x USB/2 x COM/2 x M.2(2230&2242) onboard memory chips & eMMc chips
Intel®Apollo Lake series N3350 dual-core processor/J3455 quad-core processor, fanless compact embedded industrial computer
Lightweight and compact, with characteristics of adapting to wide temperature and strong mechanism,
It can be widely used in digital signage, industrial automation, small intelligent gateways, remote terminal control, self-service equipment, integrated cabinets, and other fields.
Intel® Apollo Lake series N3350 dual-core processor/J3455 quad-core processor
Support VGA and HDMI independent dual display, HDMI 1.4 supports 4K@30Hz
4 x USB (2USB2.0+2USB3.0), all USB interfaces support power-down self-recovery
Onboard memory chip & eMMc chip, maximum vibration: 3Grms
1 x RS-232、1 x RS232/422/485
1 x M.2 M Key 2242(PCIe Gen2/SATA3.0)
1 x M.2 E Key 2230(PCIe Gen2/USB2.0)
Wireless assembly, stable performance
Small size, handheld type, easy to install
The casing is made of all-aluminum material, which has excellent heat dissipation effect

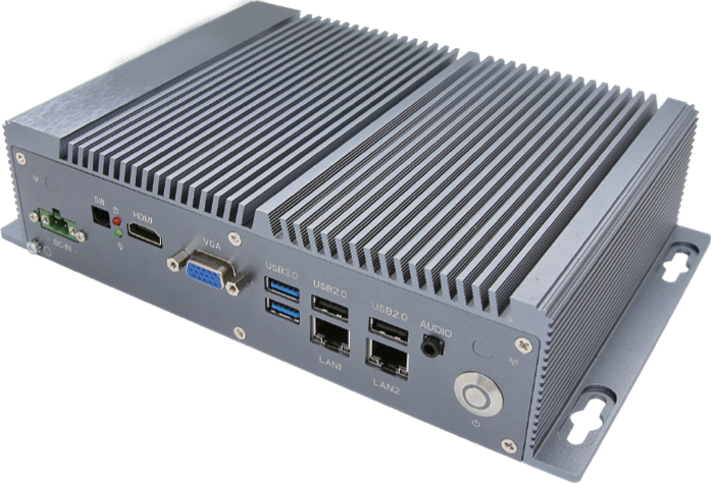

Intel® Skylake CoreTM i3-6100U/i5-6200U/i7-6500U processor
Dual-core, TDP 15W, dual network ports, six serial ports, six USB ports, 9-36V wide voltage input
Equipped with Intel® Skylake CoreTM i3-6100U/i5-6200U/i7-6500U processors
It has rich I/O interfaces, high flexibility, and supports different expansion interfaces for embedded fanless industrial hosts, and has the ability to adapt to wide temperature ranges
The characteristics of strong and robust mechanisms can be widely applied in industrial automation, machine vision, energy and environmental protection, equipment testing, metal detection, and other fields.
Onboard Intel® Skylake i3-6100U/i5-6200U/i7-6500U dual-core processor, with a maximum clock speed of 2.5GHz
Support single-channel DDR4 1866/2133MHz SO-DIMM memory slot, with a maximum memory capacity of 16GB
Support dual Gigabit network ports
Support VGA/HDMI multi-extension display
Built-in 1 x 2.5-inch HDD/SSD expandable bracket
Built-in 1 x Mini-PCIe and 2 x M.2 support for multiple module expansion
Wide voltage 9-36V DC-IN, lockable Phoenix terminal interface

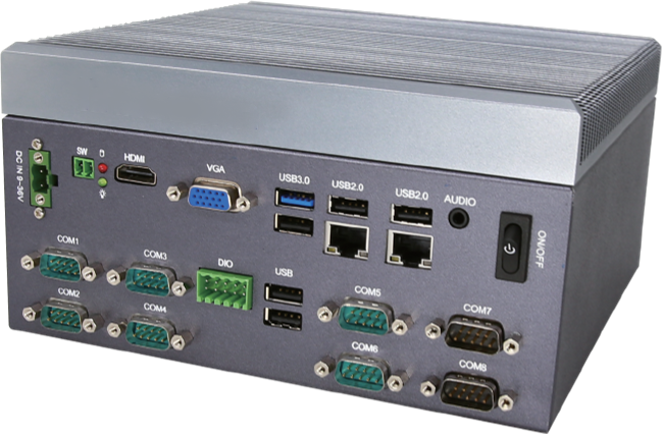

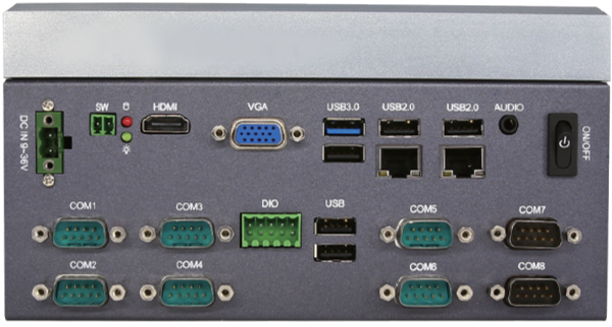

Intel®Bay Trail J1900 processor, quad-core, TDP 10W
Fanless, dual network ports, eight serial ports, six USB ports, 9-36V wide voltage input
Equipped with the Intel® Bay Trail J1900 processor, it boasts a wealth of I/O interfaces
Highly flexible and embedded fanless industrial host supporting different expansion interfaces
It is suitable for wide temperature and strong mechanism characteristics, and can be widely used in industrial automation, self-service equipment, warehouse management, intelligent manufacturing and other fields
Onboard Intel® Skylake i3-6100U/i5-6200U/i7-6500U dual-core processor, with a maximum clock speed of 2.5GHz
Support single-channel DDR4 1866/2133MHz SO-DIMM memory slot, with a maximum memory capacity of 16GB
Support dual Gigabit network ports
Support VGA/HDMI multi-extension display
Built-in 1 x 2.5-inch HDD/SSD expandable bracket
Built-in 1 x Mini-PCIe and 2 x M.2 support for multiple module expansion
Wide voltage 9-36V DC-IN, lockable Phoenix terminal interface

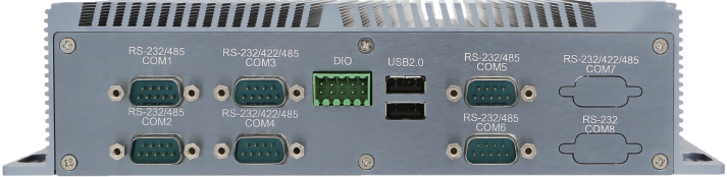

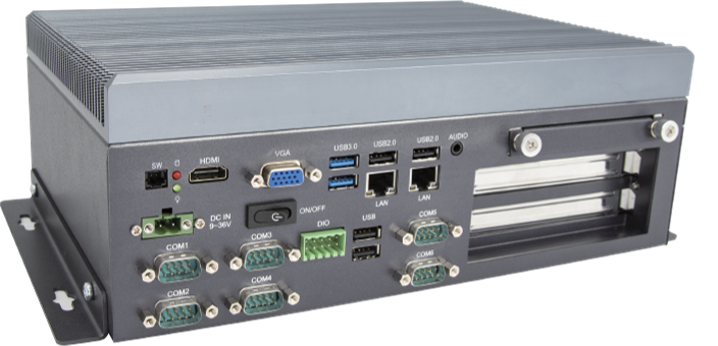

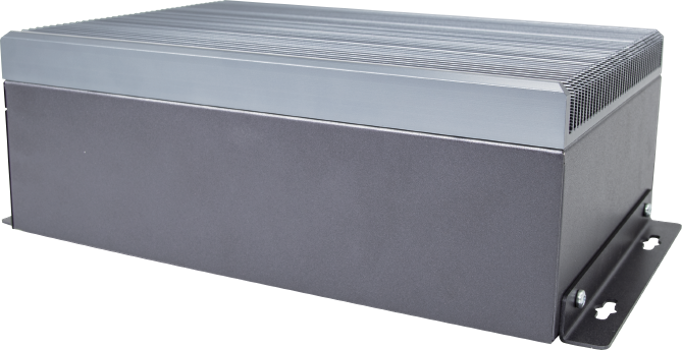

Intel® Skylake CoreTM i3-6100U/i5-6200U/i7-6500U processor
Dual-core, TDP 15W, dual network ports, six serial ports, six USB ports
Dual PCI expansion slot, 9-36V wide voltage input
Equipped with Intel® Skylake CoreTM i3-6100U/i5-6200U/i7-6500U processors, it has rich I/O interfaces,
Highly flexible and embedded fanless industrial host supporting different expansion interfaces such as 2 PCI/mini-PCIE/M.2, and with the ability to adapt to wide temperature
The characteristics of strong mechanisms can be widely applied in industrial automation, machine vision, energy and environmental protection, equipment testing, metal detection and other fields.
Onboard Intel® Skylake i3-6100U/i5-6200U/i7-6500U dual-core processor, with a maximum clock speed of 2.5GHz
Support single-channel DDR4 1866/2133MHz SODIMM memory slot, with a maximum memory capacity of 16GB
Support dual Gigabit network ports
Support VGA+HDMI multi-expansion display
Built-in 1 x 2.5-inch HDD/SSD removable box
Built-in 1 x Mini-PCIe and 2 x M.2 support for multiple module expansion
Support 2 x PCI expansion slots
Wide voltage 9-36V DC-IN, lockable Phoenix terminal interface

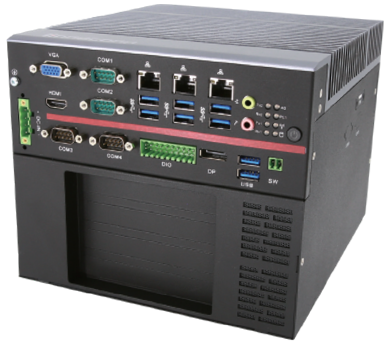

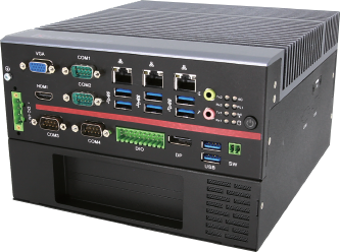

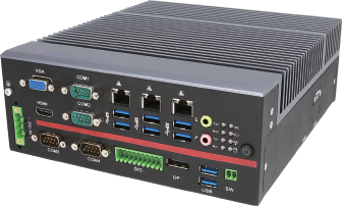

Intel® Skylake-S/Kabylake-S series LGA1151 Pentium/Celeron/Core processors
Q170/H110 chipset, 3 network ports, supports isolated serial ports, supports up to 6 serial ports
10 USB, 16bit DIO, optional 9-36V wide voltage input
It uses Intel® Skylake-S/Kabylake-S series LGA1151 Pentium/Celeron/Core processors, equipped with Q170/H110 chipsets,
It has rich I/O interfaces and highly flexible scalability, and can support isolated serial ports,
Expandable PCIEX16, PCIEX8, PCIEX4, PCIEX1 and PCI slots, standard 19-24V DC voltage input, optional 9-36V wide voltage,
The structure adopts a fanless design with high stability, and can be widely used in industrial automation, machine vision, energy and environmental protection, equipment testing, metal detection, and other fields.
Adopt Skylake-S/Kabylake-S series LGA1151 Pentium/Celeron/Core processors, equipped with Q170/H110 chipsets
Support dual-channel DDR4 2133MHz SODIMM memory slot, with a maximum memory capacity of 32GB
Support three Gigabit network ports
Support VGA, HDMI and DP++ triple display (H110 only supports VGA+HDMI dual display)
Built-in 2x 2.5-inch HDD/SSD bracket
Built-in 1x mini-PCIe/mSATA slot, 1 x M.2 2230 wifi card slot and 1 x M.2 2242 expansion slot, supporting multiple module expansions
Built-in 1 x M.2 3042/3052 optional card slot, expandable 5G module
Support PCIEX16, PCIEX8, PCIEX4, PCIEX1 and PCI expansion slots
Standard 19-24V DC power input, optional wide voltage 9-36V DC-IN
